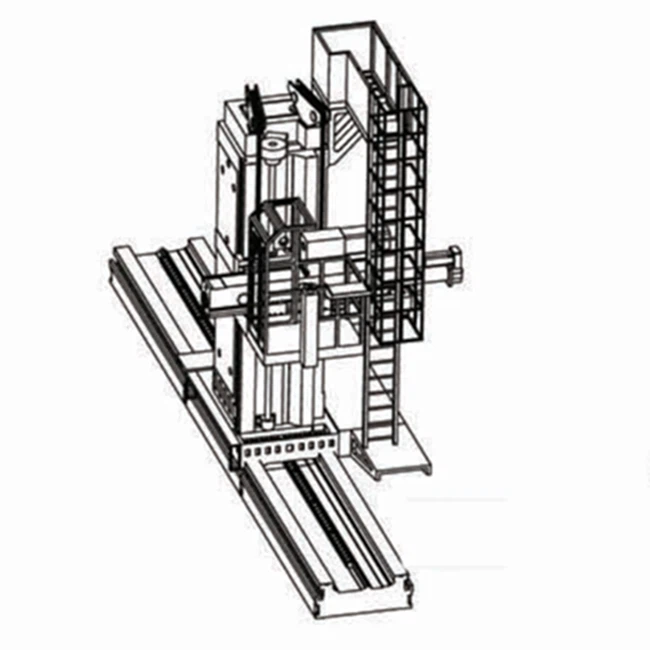

TK6913

TK6913

XYZ: 6000*3000*800 mm/Dia.Spindle:130 mm/Spindle motor:44/45 Kw
TK6913 Overview
1. Precise table center support provided by preloaded axial/radial cylindrical roller bearings
2. Spindle speed and facing slide speed are infinitely variable
3. Economic and intuitive 3-axis CNC control
4. Telescoping steel cover protects the guides from chips and dirt
5. Rigid square guides are hardened and precision-ground to ensure exact work results for many years
6. Wide machine bed with 4 guideways for linear table movement
7. Preloaded ball screws on all feed axes
8. Pneutomatic central lubrication system
9. Powerful main drive motor with 44/45 kW


TK6913 Specifications
TK6913 - Comparar:
TK-6913
Capacity
Travel of column (X) 6000 mm
Travel of spindle box (Y) 3000 mm
Travel of ram (Z) 800 mm
Spindle
Spindle motor (Fanuc) Ail50/5000B, 45kW
Spindle motor (Siemens) 1PH8 184 series, 44kW
Motors(Fanuc)
X axis motor
aiS 60/3000-B
65/2000 Nm/rpm
Y axis motor (Brake)
aiS 50/3000-B
53/2000 Nm/rpm
Z axis motor
aiS 50/2000-B
53/2000 Nm/rpm
Motors(Siemens)
X axis motor
1FT7108 (air cooling)
73/2000 Nm/rpm
Y axis motor (Brake)
1FK7105
48/2000 (brake)
Z axis motor
1FK7105
48/2000
Feeding
Feeding speed (X) 4000 mm/min
Feeding speed (Y) 4000 mm/min
Feeding speed (Z) 2000 mm/min
Rapid moving (X) 8000 mm/min
Rapid moving (Y) 8000 mm/min
Rapid moving (Z) 4000 mm/min
Precision
Positioning Accuracy 0.025 mm
Repeatability 0.020 mm
Others
Power Consumption 100 KVA
Tool capacity  40-tool
