Accuracy standard implemented: ISO10791-2:2001 (JB/T8771.1998).

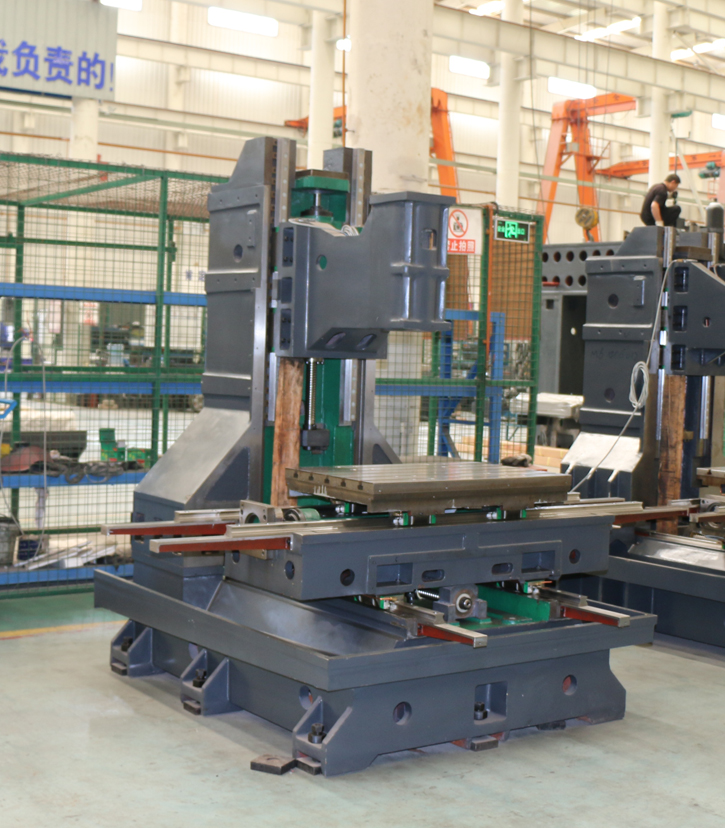

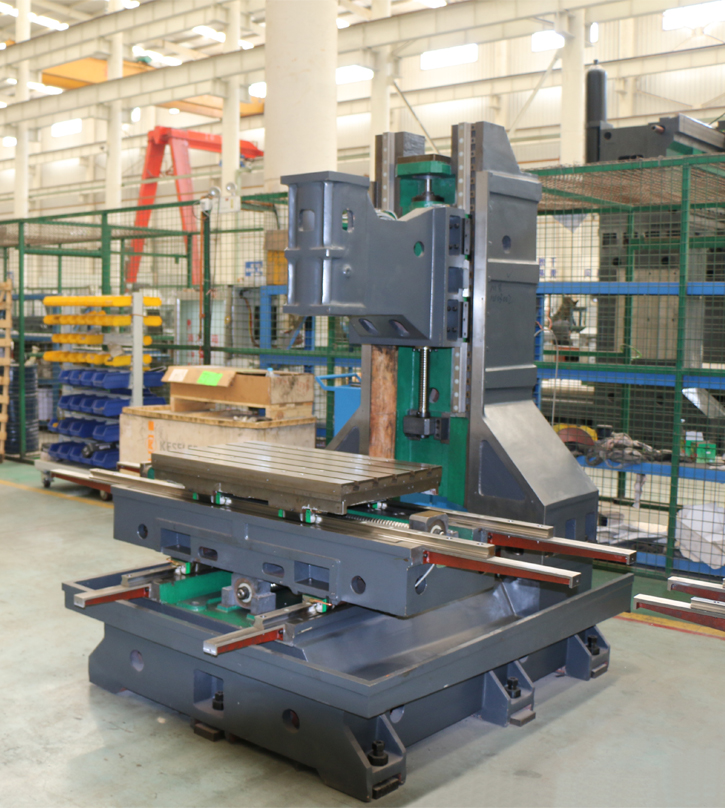

Smartech supplys both frame and complete machine, below is the introduction of frame.
Standard Components:
1. High-quality castings processed with resin sand and wooden molds ;
2. Hiwin, PMI or INA linear guidways on X, Y and Z axes;.
3. Hiwin, PMI, BSG or HPS (brand of) ball screws,
4. NSK or FAG bearings for supporting ball screws ;
5. Royal or POSA spindle, 12000/15000 rpm, drect-drive ;
6. Beijyu or Haocheng brand of tool unclamping system ;
7. R&W couplings from Germany ;
8. Keyarrow (Taiwan) brand of telescopic covers, stainless steel cover on all axes ;
9. Centralized lubrication system of Byjur or HERG brand ;
10. Coolant system installed.
* Same price for all the brands mentioned.
Optional Components:
1 15000 rpm Spindle ;
2 Outside guarding, standard or specially designed for client ;
3 Central oil coolant for the spindle ;
4 Chip conveyor: helix type, chain type ;
5 Coolant pump of Taiwan brand Walrus ;
6 ATC: drum type, arm type or chain type.
7 CNC pre-installed for client, complete machine ready to use.
